Disconnect and verify
Have a qualified installer disconnect the supply, prevent accidental re-energisation and verify that the circuit is de-energised before electrical work.
Plan the installation before your sign arrives.
Review the equipment, mounting examples and wiring checks with your installer.
01 · Before installation
Keep the supply dry and ventilated
Place the power supply and switch in a dry, ventilated location. Do not expose an indoor-only sign to prolonged contact with water.
Protect the supplied product
Do not modify the product or use corrosive solvents on it. Only open a removable front when the supplied installation instructions require it.
Follow local electrical requirements
Use suitable approved wires and terminals, and follow local electrical rules. Have the installer check the connections against your order’s wiring diagram before commissioning.
02 · Tools & components
Confirm these with your installer. Supplied fittings and installation documents are listed in the FAQs.
Hand drill & screwdriver
Suitable adhesive
Approved wire terminals
Approved electrical wire
Mounting screws & fittings
Specified power supply
03 · Mounting examples
The source guide describes removable-front and stud-mounted signs. These are different mounting methods; follow the method specified for your order.
Removable-front signs
When specified, remove the return screws and separate the front from the back.
Use the supplied template to mark mounting and wire-routing holes. Confirm hole sizes against the order documents.
Route the wire through the opening and secure the back to the wall using the specified fittings.
Return the front to its position and secure it with the supplied screws.
Stud-mounted letters
Fit the studs into the letter’s mounting holes as specified.
Use the supplied template to locate mounting and wire-routing holes.
Apply the specified sealant or adhesive to the rear and studs only where the installation notes require it.
Route the wire and position the letter in the prepared mounting holes, following the supplied fixing instructions.
04 · Connections to avoid

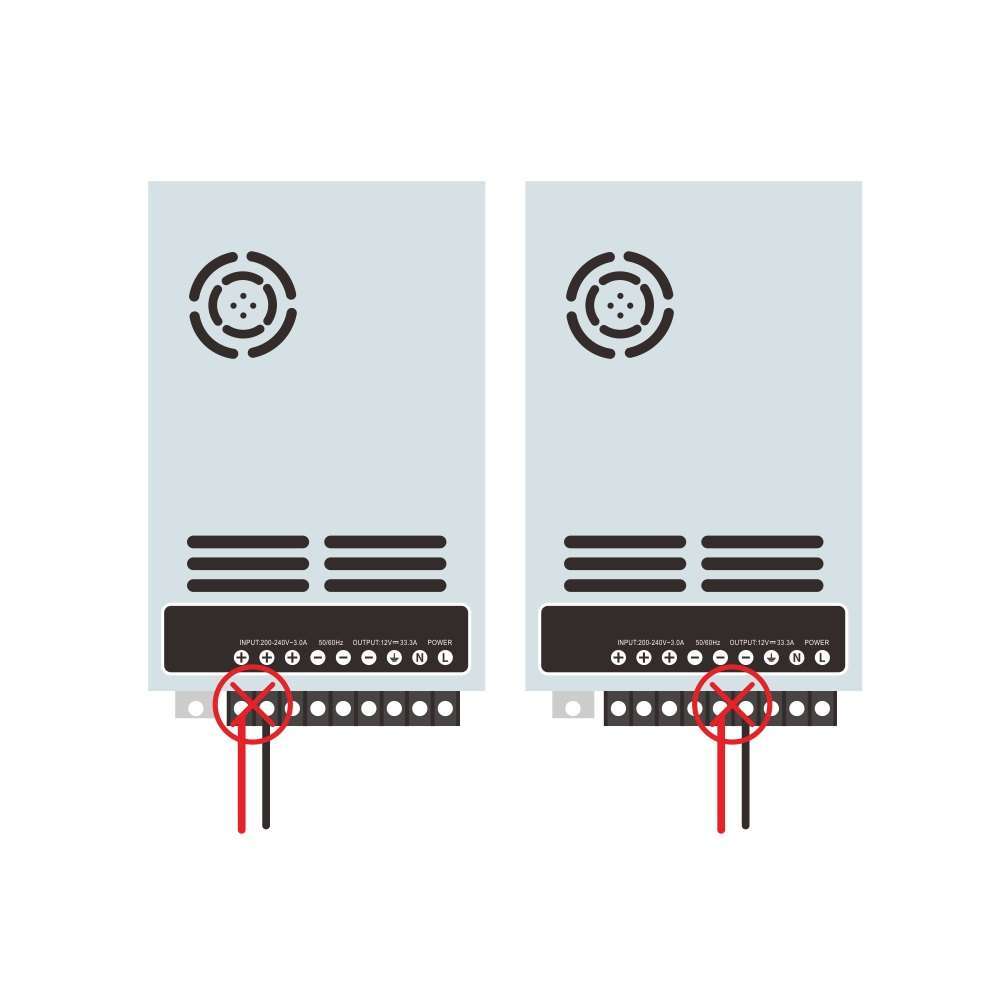

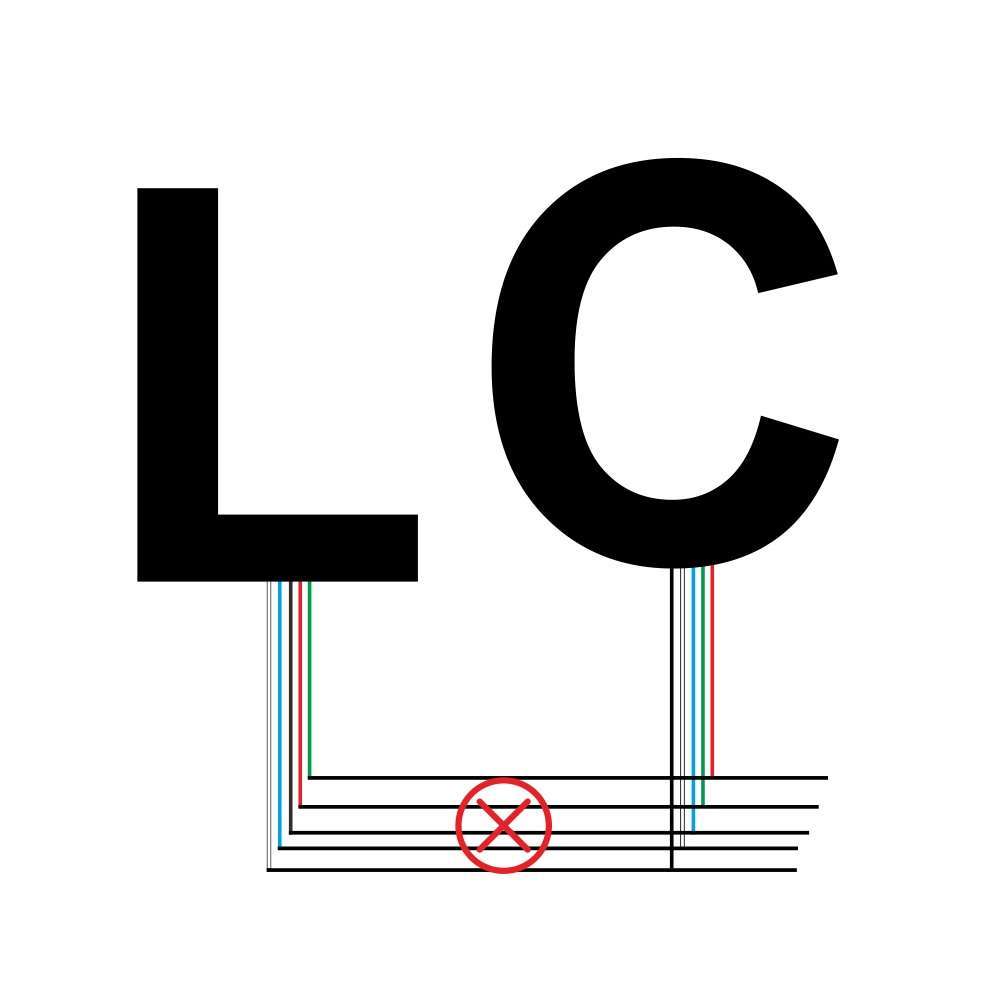

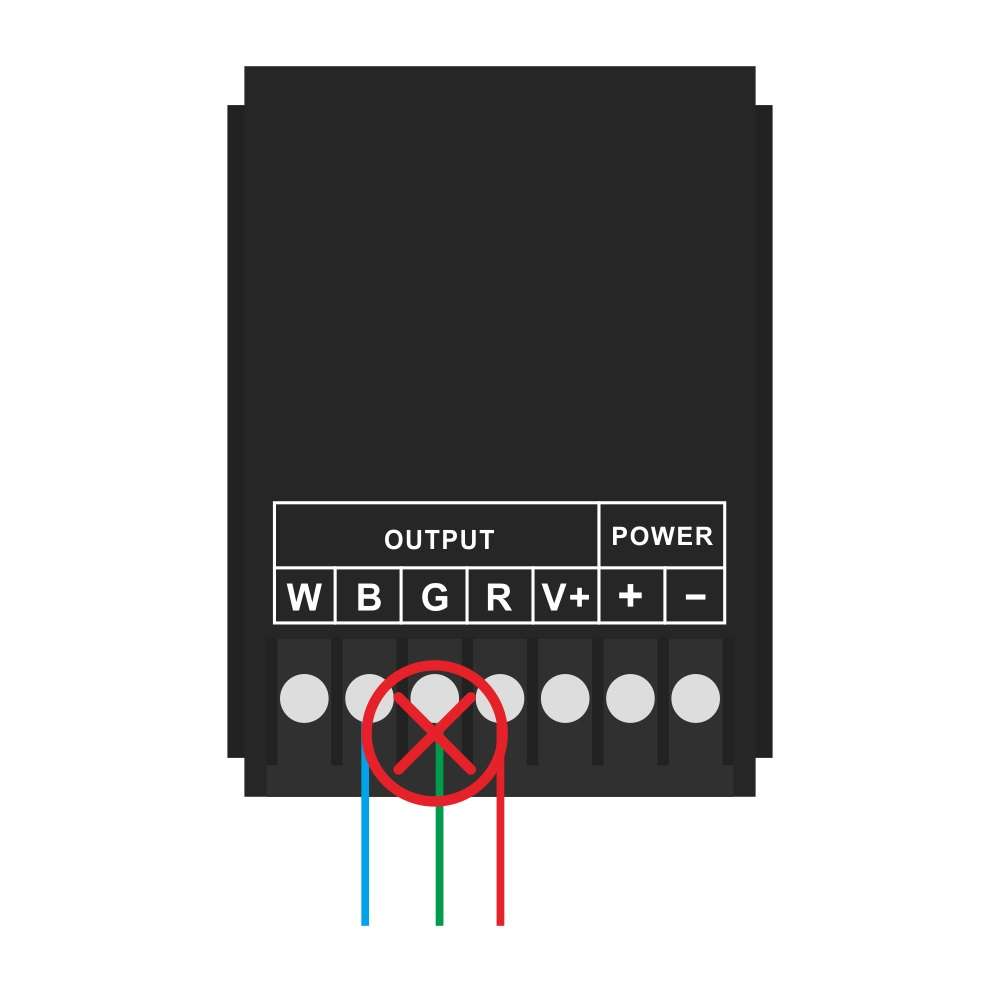

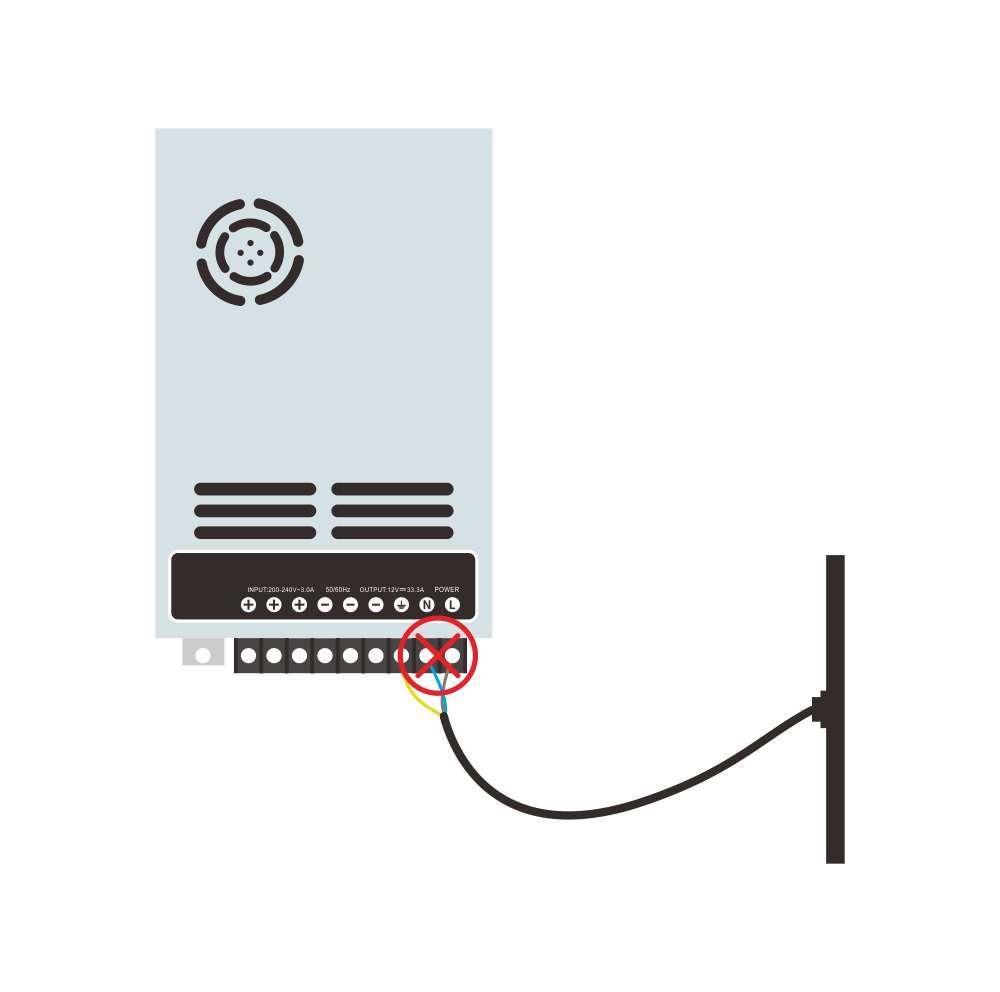

These original diagrams show incorrect connections. Enlarge them for reference, and have your installer use the wiring diagram supplied with your sign.
